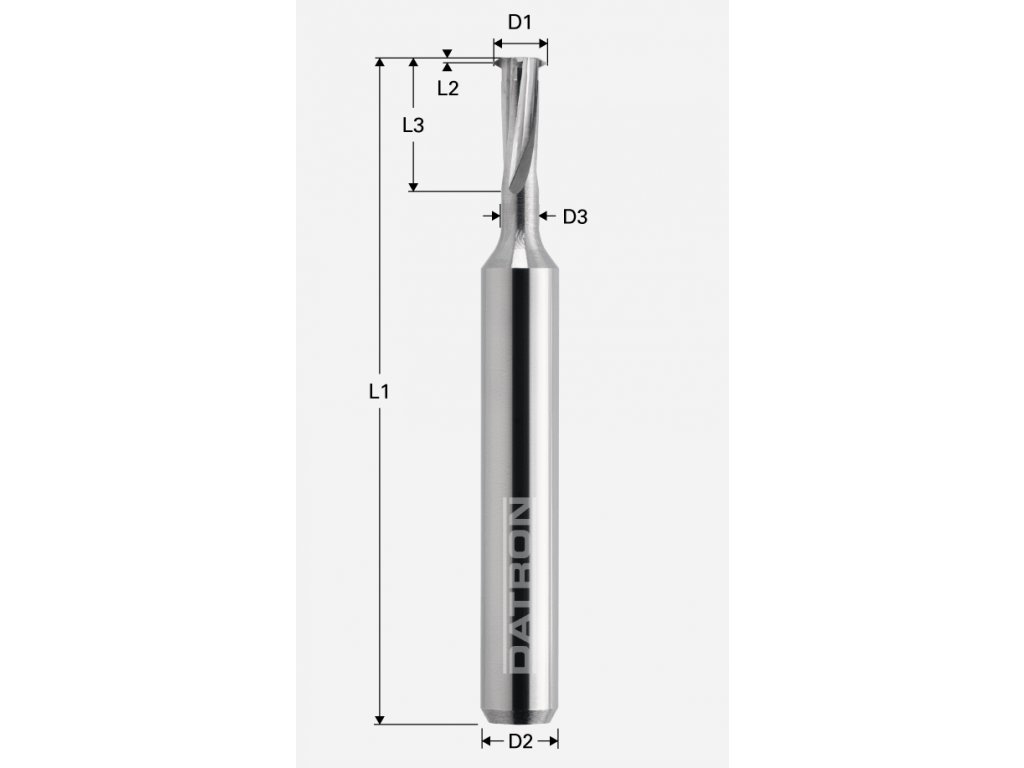

Závitová fréza zosilená M7; D1=4,9 / D2=6,0 / D3=3,6 / L1=68,0 / L2=0,4 / L3=28,0

Podrobný popis

#SVK# P R E L O Ž I Ť ! D1=4,9mm / D2=6,0mm / D3=3,6mm / L1=68,0mm / L2=0,4mm / L3=28,0mm / alfa=60,0° ##CZK# P Ř E L O Ž I T ! D1=4,9mm / D2=6,0mm / D3=3,6mm / L1=68,0mm / L2=0,4mm / L3=28,0mm / alfa=60,0° ##GER# Gewindewirbler Vollhartmetall-Gewindefräser mit 4 Schneide/n für Gewinde M7 Schneid-Durchmesser (D1) = 4,9 mm Schaft-Durchmesser (D2) = 6,0 mm Schaftfreischliff-Durchmeser (D3) = 3,6 mm Gesamtlänge (L1) = 68,0 mm Schneidlänge (L2) = 0,43 mm Nutzlänge (L3) = 28,0 mm Schaftform = DIN 6535 Form HA ##ENG# Thread Mill Solid CarbideThread Mill With 4 Flute/s for Threads M7 Flute Diameter (D1) = 4,9 mm Shank Diameter (D2) = 6,0 mm Total Length (L1) = 68,0 mm Flute Length (L2) = 0,43 mm Usable Length (L3) = 28,0 mm Shank Form = DIN 6535 Form HA ##
